A few years ago I started generating PDF invoices and receipts directly within Salesforce. Since invoices or receipts may have many rows of data and the data may span multiple pages, I decided to include a page counter in the margin of each rendered page.
Yesterday I was creating another Visualforce PDF page and I needed to include a page counter again. I had some difficulty recalling exactly how to build that logic and thought it would make sense to post it on InteractiveTies.com so I could find it more easily the next time I need it.
As I began thinking about how to demonstrate the logic I thought it made more sense to create a simple template for other developers to use as they consider building out Visualforce pages that render as PDF.
In this example we will be using a Cascading Style Sheet (CSS) as a static resource. You may download the file here. The content of the CSS file is as follows:
/*
Created by: Greg Hacic
Last Update: 5 August 2015 by Greg Hacic
Questions?: greg@interactiveties.com
Notes:
- this file is stored as a static resource in Salesforce and referenced in Visualforce pages with the <apex:stylesheet> tag
*/
body {
font-family: Arial, Helvetica, sans-serif;
}
@page {
size: landscape; /*landscape orientation*/
/*page numbers in the bottom center of each page in the pdf document*/
@bottom-center {
content: "Page " counter(page) " of " counter(pages);
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
/*placeholders for other content areas*/
@bottom-right {
content: "Bottom Right";
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
@bottom-left {
content: "Bottom Left";
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
@top-right {
content: "Top Right";
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
@top-center {
content: "Top Center";
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
@top-left {
content: "Top Left";
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
}
We need to create the static resource in Salesforce before we create our Visualforce page. Navigate to Setup > Develop > Static Resources then click the "New" button on the resulting page. Upload the file and provide these additional details:
- Name: pdfStyle
- Cache Control: Public
Now that the CSS file has been uploaded we may create the Visualforce page that will actually render as a PDF. Go to Setup > Develop > Pages and click the "New" button. The Visualforce page code:
<apex:page renderAs="pdf">
<!--
Created by: Greg Hacic
Last Update: 5 August 2015 by Greg Hacic
Questions?: greg@interactiveties.com
-->
<apex:stylesheet value="{!$Resource.pdfStyle}"/>
<div align="right"><strong>Date</strong>: {!DAY(Today())} {!CASE(MONTH(Today()), 1, 'January', 2, 'February', 3, 'March', 4, 'April', 5, 'May', 6, 'June', 7, 'July', 8, 'August', 9, 'September', 10, 'October', 11, 'November', 12, 'December', 'Unknown')} {!YEAR(Today())}</div>
<div align="right"><strong>Generated By</strong>: {!$User.FirstName} {!$User.LastName}</div>
<center>
<h1>Visualforce PDF Sample</h1>
</center>
<p>You can render any page as a PDF by adding the renderAs attribute to the <apex:page> component, and specifying "pdf" as the rendering service.</p>
<p>Visualforce pages rendered as PDFs will either display in the browser or download as a PDF file, depending on your browser settings.</p>
<table align="center" style="border: 1px solid #6699CC;">
<tr>
<td style="background-color: #6699CC; color: #FFFFFF; font-size: 200%; padding: 10px;">NOTES</td>
<td>
<ul>
<li>Create a CSS file for your PDF styles and include it using the <apex:stylesheet> tag.</li>
<li>Within that CSS file be sure to include items like the orientation of the generated page and a page counter (if desired):
<pre><code>@page {
size: landscape; /*landscape orientation*/
/*page numbers in the bottom center of each page in the pdf document*/
@bottom-center {
content: "Page " counter(page) " of " counter(pages);
font-family: Arial, Helvetica, sans-serif;
font-size: 80%;
}
}</code></pre></li>
<li>You may use inline CSS declarations but be sure to consider any limitations: www.salesforce.com/us/developer/docs/pages/Content/pages_output_pdf_considerations.htm</li>
</ul>
</td>
</tr>
</table>
<div style="color: #999999; font-size: 90%; margin-top: 15px;">
<div>Original Code By: Greg Hacic</div>
<div>Source Code: https://interactiveties.com/blog/2015/render-visualforce-pdf.php</div>
<div>Questions?: greg@interactiveties.com</div>
</div>
</apex:page>

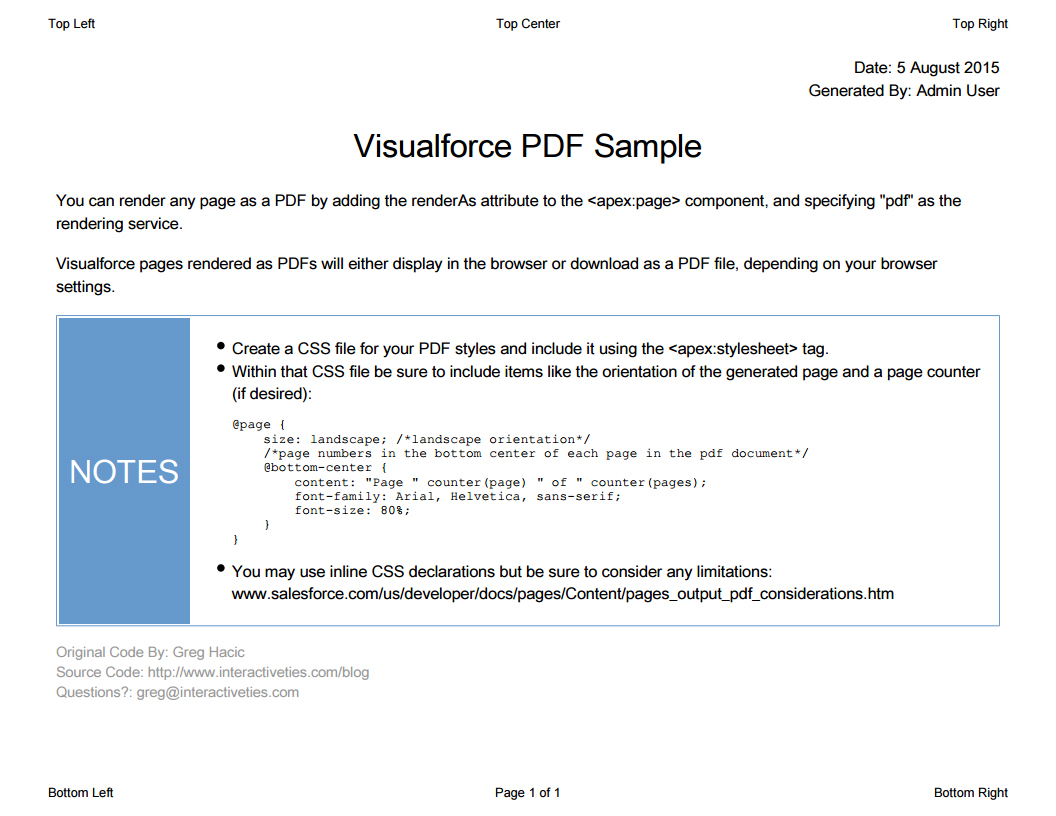

Accessing the Visualforce page renders the following PDF:
That's all you need to get started. Feel free to hack away and make it work for you.
Author
Greg Hacic
I've been working with Salesforce since 2003. Over the years, I've held various roles for a diverse array of salesforce.com customers, created a Salesforce specific ISV, and built numerous applications for the AppExchange. All of these experiences have allowed me to learn quite a bit about building on the platform.
